Registering the Hook

You can register a Hook using the Cloud Dashboard web UI.

info

Before proceeding with either method, make sure that the test server we have set up in the previous section is running and that you have a console window open where you can watch its standard output.

Registering a Hook using the Cloud Dashboardโ€‹

Go to the Storage & Hooks page on the Cloud Dashboard and log in if you haven't yet authenticated.

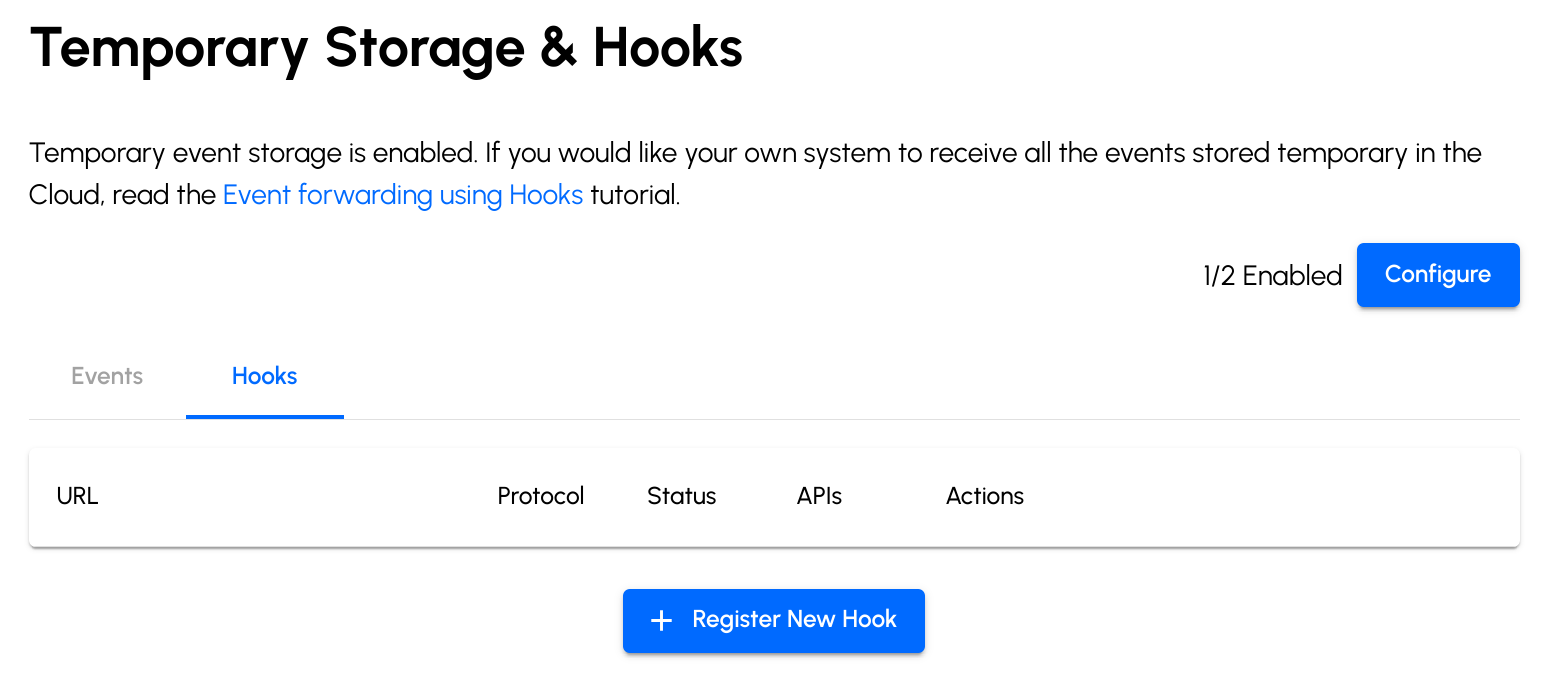

Empty hook list

Switch to the Hooks tab and click the "Register New Hook" button.

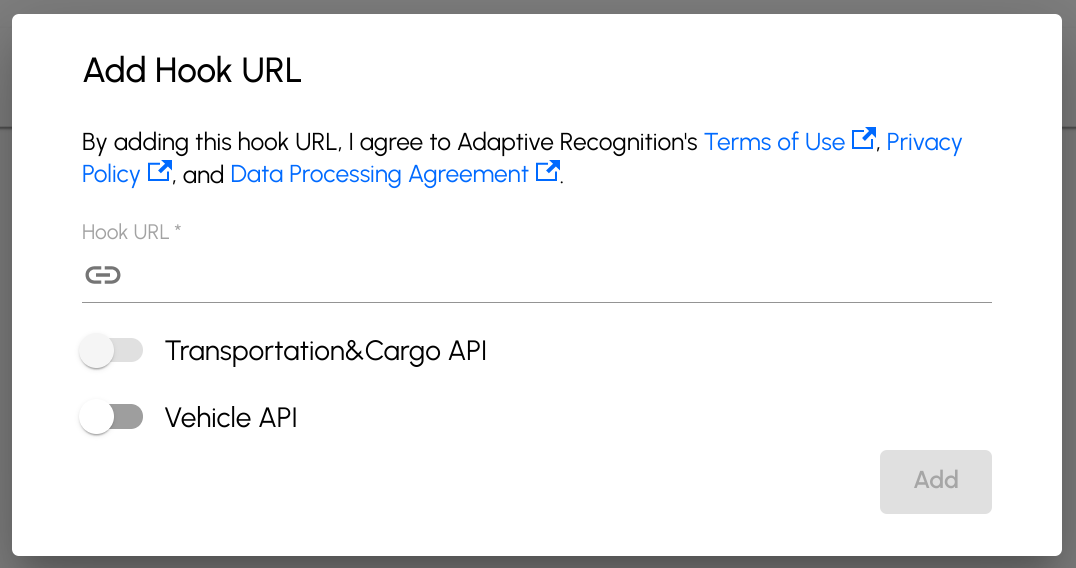

Add hook dialog

Enter a URL your test server will respond to, select the API(s) you would like to subscribe to, and click the Add button.

Add hook dialog

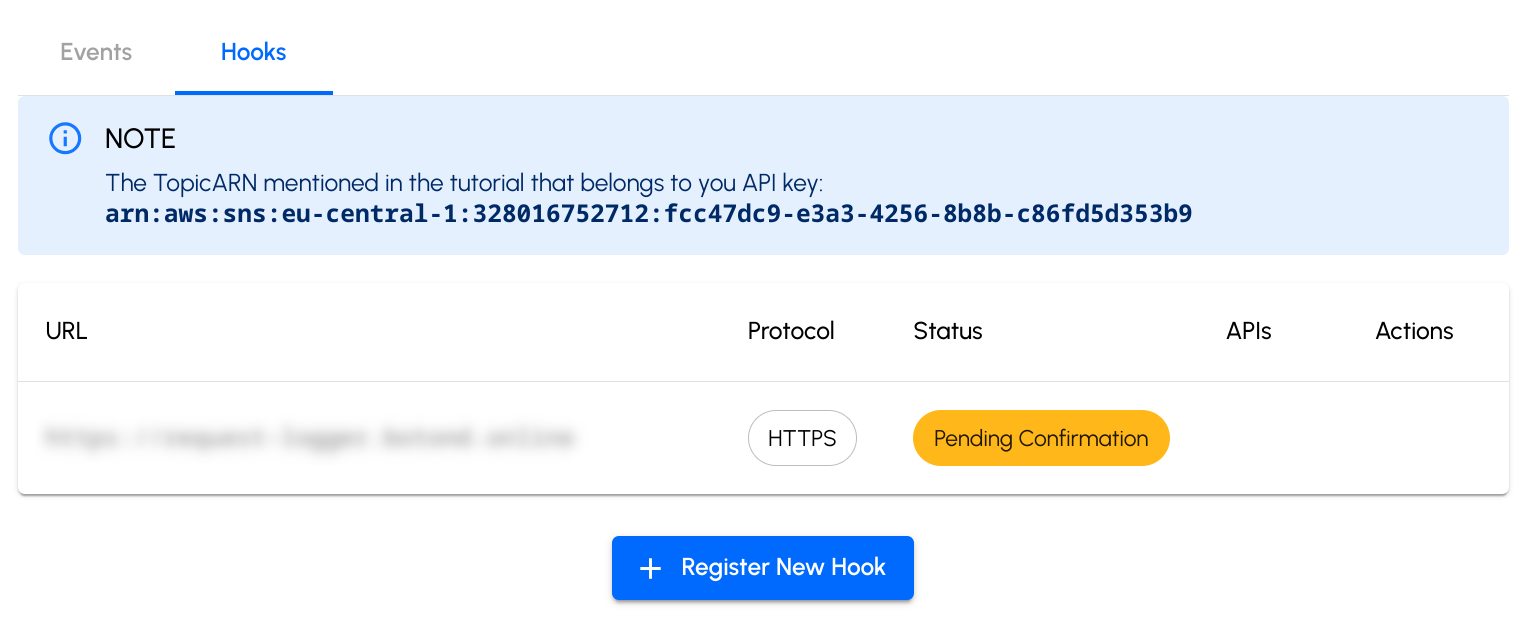

The console now lists the newly registered hook as pending.

After registration, the hook is represented by an object like this:

{
  "status": "pending_confirmation",
  "protocol": "https",
  "apis": ["vehicle"],
  "hookUrl": "<hook-url>",
  "topicName": "79ab71e2-6485-41cc-aa28-0cdd0c385ff1"
}

The status property shows that the hook has not been confirmed yet. The topicName property contains the name of the SNS topic that must match the name in the subscription request. You can check this when processing the subscription for added security.

info

Hooks can also be managed programmatically via the Carmen Cloud API: exchange your API key for a bearer access token (see the Authentication reference), then call the /workspace/{workspaceId}/storage/hooks endpoints.
