Testing the Hook

info

Before testing the hook, make sure that the test server we have set up in this section is running and that you have a console window open where you can watch its standard output.

The easiest way to test whether the newly registered hook works correctly is to send a Vehicle API request from the Cloud Dashboard Demo Page.

Find a Test Imageโ€‹

Find an image of a vehicle with the license plate visible, or download this one for a quick test:

Determine the region and countryโ€‹

Choose the region and expected location of the vehicle. For the image above, the region is eur (Europe) and the location is ROU (Romania).

Valid values for the region are:

  • Europe: eur
  • Africa: afr
  • Australia: aus
  • North America: nam
  • Central America: cam
  • South America: sam
  • East Asia: eas
  • Central Asia: cas
  • South Asia: sas
  • Middle East: arab
  • Middle East: me

For a list of all possible locations, please refer to this table.

Send the Requestโ€‹

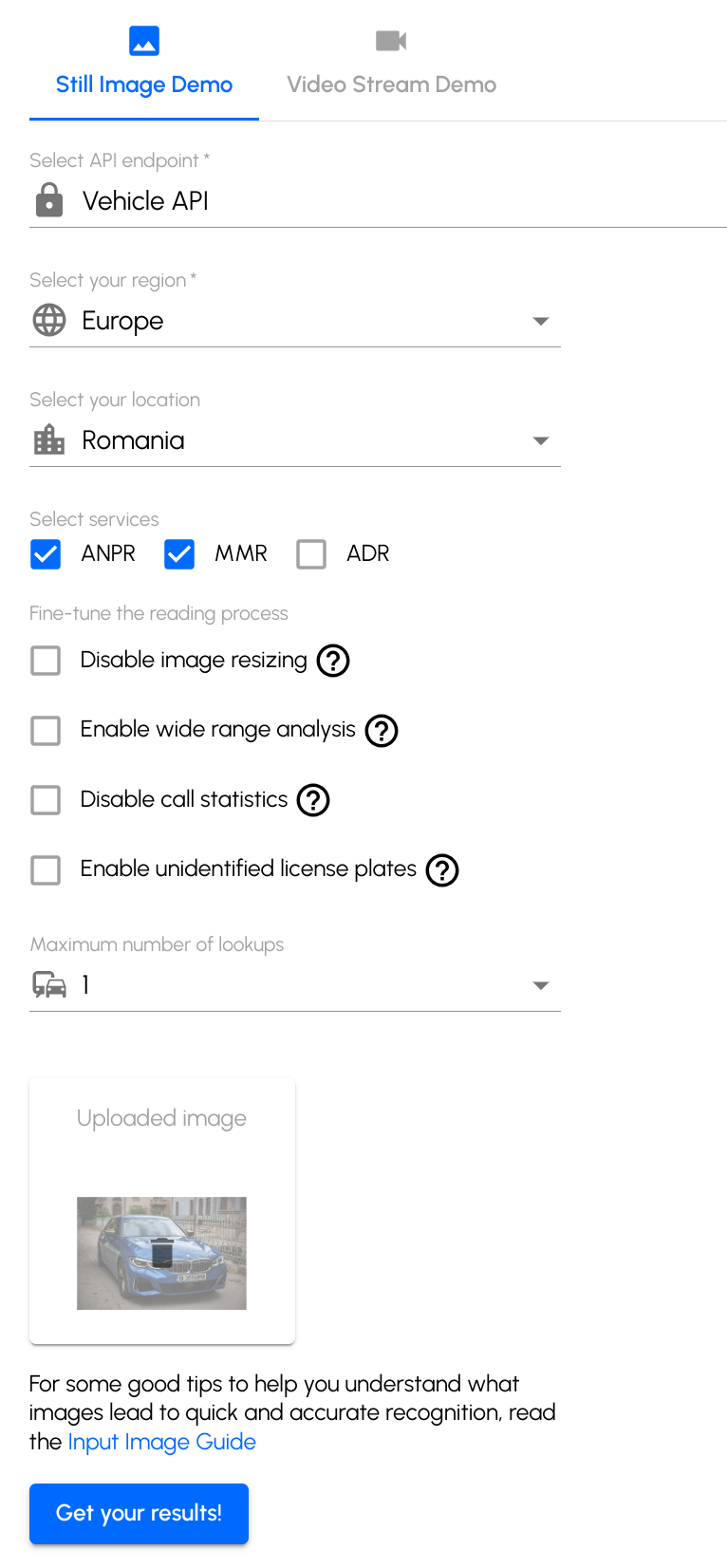

Fill in the demo form (the screenshot here shows values appropriate for the test image above):

Demo

Click the "Get Your Results" button.

Check the Server Logsโ€‹

If the hook has been configured properly, a message similar to the following should appear in the test server logs:

INFO:root:============================
INFO:root:POST request,
Path: /
Headers:
X-Forwarded-For: 54.239.6.6
Host: <your-host>
X-Forwarded-Proto: http
Connection: close
Content-Length: 8328
x-amz-sns-message-type: Notification
x-amz-sns-message-id: <xxxxx>
x-amz-sns-topic-arn: arn:aws:sns:eu-central-1:328016752712:<your-topic-name>
x-amz-sns-subscription-arn: arn:aws:sns:eu-central-1:328016752712:<your-topic-name>:<your-subscription-id>
X-Amzn-Trace-Id: <xxxxx>
Content-Type: text/plain; charset=UTF-8
User-Agent: Amazon Simple Notification Service Agent
Accept-Encoding: gzip,deflate



Body:
{
  "Type" : "Notification",
  "MessageId" : "<xxxxx>",
  "TopicArn" : "arn:aws:sns:eu-central-1:328016752712:<your-topic-name>",
  "Message" : "{\n  \"attachmentURLs\": [\n    \"https://arhnordic-dev.s3.eu-central-1.amazonaws.com/private/eu-central-1%3Afcc47dc9-e3a3-4256-8b8b-c86fd5d353b9/87399ac3-8c02-470c-ae3a-84caa72e68ed.jpeg?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Date=20221020T134541Z&X-Amz-SignedHeaders=host&X-Amz-Expires=86399&X-Amz-Credential=AKIAUYX2SOBELNIP5TEM%2F20221020%2Feu-central-1%2Fs3%2Faws4_request&X-Amz-Signature=8db5dc60be062652f59129a38eba58b0410316dda86b71cfdc6a855f17144450\"\n  ],\n  \"requestId\": \"87399ac3-8c02-470c-ae3a-84caa72e68ed\",\n  \"principalId\": \"eu-central-1:fcc47dc9-e3a3-4256-8b8b-c86fd5d353b9\",\n  \"api\": \"vehicle\",\n  \"event\": {\"attachmentURLs\":[\"https://arhnordic-dev.s3.eu-central-1.amazonaws.com/private/...\"],\"requestId\":\"87399ac3-8c02-470c-ae3a-84caa72e68ed\",\"principalId\":\"eu-central-1:fcc47dc9-e3a3-4256-8b8b-c86fd5d353b9\",\"api\":\"vehicle\",\"event\":{\"data\":{\"vehicles\":[{\"plate\":{\"found\":true,\"country\":\"ROU\",\"plateTypeConfidence\":47,\"positionConfidence\":100,\"plateChars\":[],\"unicodeText\":\"B365BMW\",\"separatedText\":\"B 365 BMW\",\"engine\":\"cmanpr-7.3.12.116 : rou_local\",\"proctime\":73,\"confidence\":33,\"plateROI\":{},\"plateType\":110026},\"mmr\":{\"engine\":\"mmr-7.3.4.24 : mmr-eur\",\"found\":true,\"proctime\":87,\"category\":\"CAR\",\"categoryConfidence\":62,\"color\":{\"r\":0,\"g\":0,\"b\":255},\"colorConfidence\":95,\"make\":\"BMW\",\"model\":\"5\",\"makeConfidence\":100,\"modelConfidence\":62,\"heading\":\"frontal\",\"headingConfidence\":99},\"bounds\":{}}]},\"nodename\":\"74f2fb5c-8be8-4a2b-bcfb-e0708eacfd04 ([380]e1a68a7ba39f4ed4b128b1fc5b17aecb)\",\"nodetime\":250,\"version\":\"1.3\"},\"eventDataRoot\":\"event.data.vehicles\"},\n  \"eventDataRoot\": \"event.data.vehicles\"\n}",
  "Timestamp" : "2022-10-20T13:45:41.412Z",
  "SignatureVersion" : "1",
  "Signature" : "<signature>",
  "SigningCertURL" : "https://sns.eu-central-1.amazonaws.com/SimpleNotificationService-56e67fcb41f6fec09b0196692625d385.pem",
  "UnsubscribeURL" : "<unsubscribe-url>"
}

127.0.0.1 - - [20/Oct/2022 13:45:41] "POST / HTTP/1.0" 200 -
info

In production applications, we recommend performing the following security checks when receiving a webhook request:

  • The topic name (the last colon-separated part of the TopicArn in the subscription request body) must match the topicName property returned by the API after registering the hook.
  • The digital signature included in the Signature property must be valid.

The purpose of this tutorial is to show the simplest possible way to implement a Hook, so we will skip the verification steps detailed above.

The Message property contains the forwarded event with some metadata:

{
  "attachmentURLs": [
    "https://arhnordic-dev.s3.eu-central-1.amazonaws.com/private/..."
  ],
  "requestId": "87399ac3-8c02-470c-ae3a-84caa72e68ed",
  "principalId": "eu-central-1:fcc47dc9-e3a3-4256-8b8b-c86fd5d353b9",
  "api": "vehicle",
  "event": {
    "data": {
      "vehicles": [
        {
          "plate": {
            "found": true,
            "country": "ROU",
            "plateTypeConfidence": 47,
            "positionConfidence": 100,
            "plateChars": [ ... ],
            "unicodeText": "B365BMW",
            "separatedText": "B 365 BMW",
            "engine": "cmanpr-7.3.12.116 : rou_local",
            "proctime": 73,
            "confidence": 33,
            "plateROI": { ... },
            "plateType": 110026
          },
          "mmr": {
            "engine": "mmr-7.3.4.24 : mmr-eur",
            "found": true,
            "proctime": 87,
            "category": "CAR",
            "categoryConfidence": 62,
            "color": {
              "r": 0,
              "g": 0,
              "b": 255
            },
            "colorConfidence": 95,
            "make": "BMW",
            "model": "5",
            "makeConfidence": 100,
            "modelConfidence": 62,
            "heading": "frontal",
            "headingConfidence": 99
          },
          "bounds": { ... }
        }
      ]
    },
    "nodename": "74f2fb5c-8be8-4a2b-bcfb-e0708eacfd04 ([380]e1a68a7ba39f4ed4b128b1fc5b17aecb)",
    "nodetime": 250,
    "version": "1.3"
  },
  "eventDataRoot": "event.data.vehicles"
}

The original API response is in the event property. The attachmentURLs array contains a link to the original input image.
